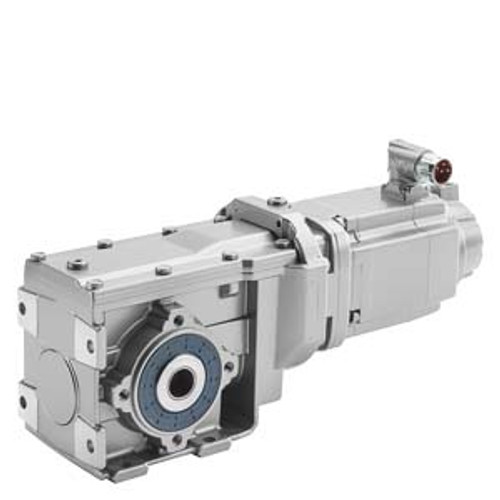

Siemens SIMOTICS S-1FG1 SERVO GEARED MOTOR 1FG1511-8BS83-8AB1-ZD14E01G48G97K12K82N34Q92Q95R72R92W90Y84

(No reviews yet) Write a Review
€15,405.00
SKU:
1FG1511-8BS83-8AB1-ZD14E01G48G97K12K82N34Q92Q95R72R92W90Y84
Availability:
3-4 weeks

4 Great reasons to buy from us:

SIMOTICS S-1FG1 GEARMOTOR BEVEL GEARING K109; MOTOR TYPE CT 600V AH10 MMAX=150 ENCODER: AS24DQI-88 / AS24DQI-7 FOOT-MOUNTED TYPE; GEAR RATIO i= 6,83; N1MAX=4500 RPM N2MAX=659 RPM, M2MAX=1320 NM D41: MOUNTING POSITION M4-A E01: Angle of rotation Y-AXIS5 G48: OIL COMPENSATING RES. 1,5L K12: OIL CLP ISO PAO VG220 K82: MANUAL Ventilation N34: Spring-loaded brake M2BR=8 Q92: POSITION CONNECTOR BELOW Y84:CUS. INSTR. ON RATING PLATE G97: glued final stage R92: Screw plug at bottom; R72: Encoder f. use in low temp;Q95: Position manual brake bottom Solid shaft without feather key
  • Type: SIMOTICS S-1FG1 SERVO GEARED MOTOR
  • Article number: 1FG1511-8BS83-8AB1-ZD14E01G48G97K12K82N34Q92Q95R72R92W90Y84
  • Country of origin: Germany
  • Net weight: 153,00 Kg
  • Typical lead time: 3-4 weeks
  • Datasheet: Download PDF
