178B4742 VLT2815PT4B20SBR0DBF12A00C0

(No reviews yet) Write a Review
€0.00
SKU:
178B4742

4 Great reasons to buy from us:

VLT2815PT4B20SBR0DBF12A00C0
Product is discontinued.
Please use the replacement product

VLT2815PT4B20SBR0DBF12A00C0

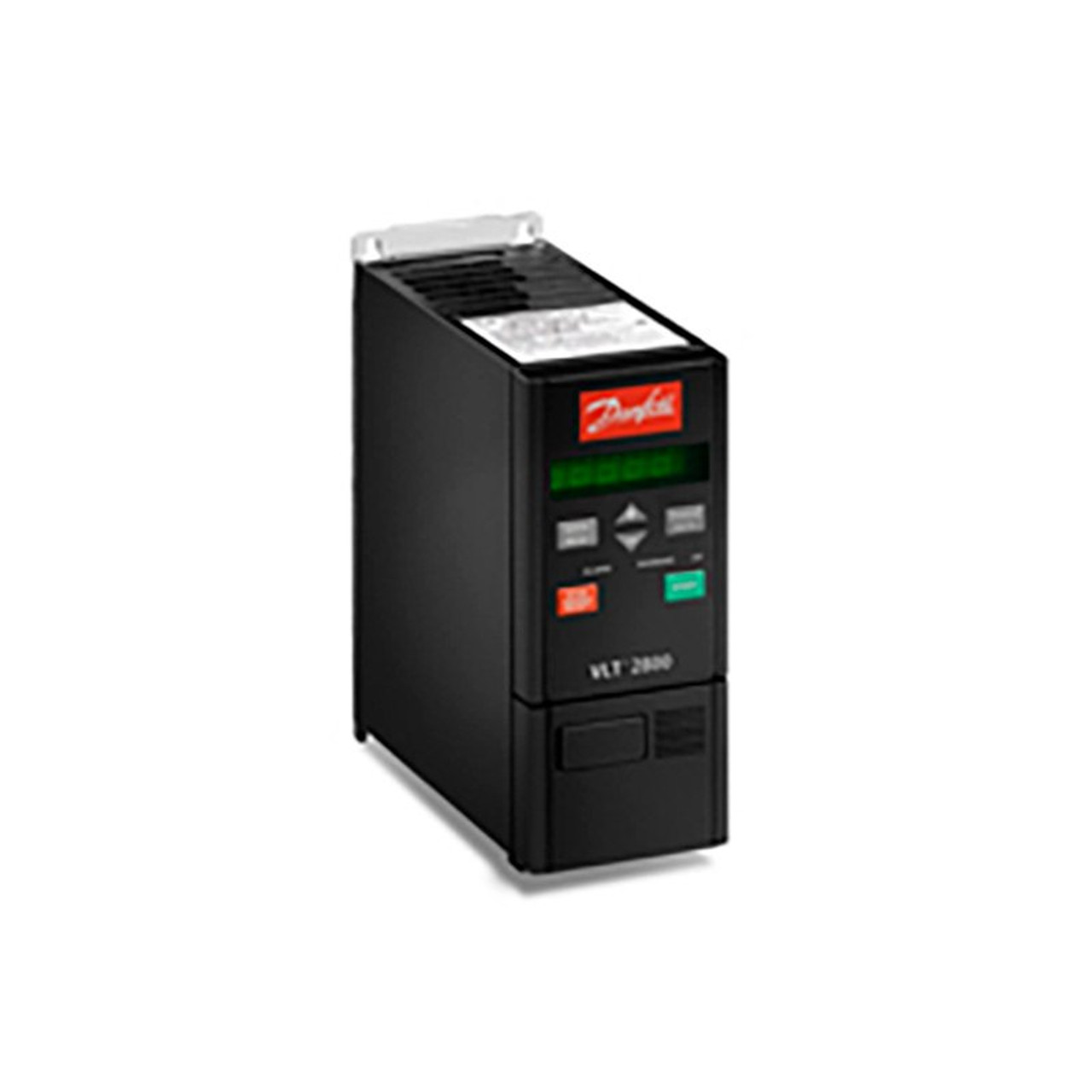

VLT® 2800 Serie
1.5kW / 2.0 HP, 3X380-480V 50/60Hz,
Without filter (No EMC), IP20


Model code : VLT2815PT4B20SBR0DBF12A00C0

This product is not RoHS compliant and is no longer available for general sale. Contact your local customer service organiz.


Gross weight2.7 kg
Net weight2.4 kg
Volume16.53 l
EAN5702427087903


VLT® 2800 Series
Product View (Switch)GLBLGlobal (Standard)
Product GroupVLTVLT®
VLT Series282800
Power Rating151.5kW / 2.0 HP
Dedicated ApplicationPProcess
PhaseT3 phase
Mains Voltage U(in)4380-480V +/- 10% 50/60Hz
Enclosure TypeBBookstyle
Enclosure Class20IP20
Hardware ConfigurationSBStandard with brake
RFI FilterR0Without filter (No EMC)
DisplayDBBuilt In Display (SLCP)
Fieldbus OptionF12Profibus DP 12 MBaud
Application OptionA00No application option
CoatingC0Without coating
Frame SizeAA-Frame
Typecode Part 1VLT2815PT4B20SBR0DBF12A00C0
Product CatalogNO_VIEWNO VIEW
Height [mm]200
Width w/ no C options [mm]75
Depth [mm]168
Weight [kg]2.1
kVA2.6
Calculated Gross Weight [kg]2.4
Calculated Net Weight [kg]2.1
Material Gross Weight2.7
Material Net Weight2.4
VendorERR01Cannot Determine Vendor
Recommended FactoryERR01Cannot Determine Vendor
Modelcode01VLT2815PT4B20SBR0DBF12A00C0
